GORE® Aerospace Ethernet Cables
Assembly Electrical Data - Carlisle Octax® M38999 (Size 11)
技术信息, 中国
Includes performance results for a 10-meter cable assembly with a plug and receptacle connector based on RCN9034-24.
Carlisle Octax® M38999 Size 11 Connector System - Electrical Data
The following graphs include performance results for a 10-meter cable assembly with a plug and receptacle connector based on RCN9034-24. The test leads are mating Octax® connectors terminated with shielded microwave coax cables for each primary, and SMA connectors to interface with the test equipment.
![Insertion Loss Graph](/sites/default/files/2017-04/Carlisle%20Octax%20M38999%20-%20Insertion%20Loss%20graph.jpg 1x, /sites/default/files/2017-04/Carlisle%20Octax%20M38999%20-%20Insertion%20Loss%20graph.jpg 2x)

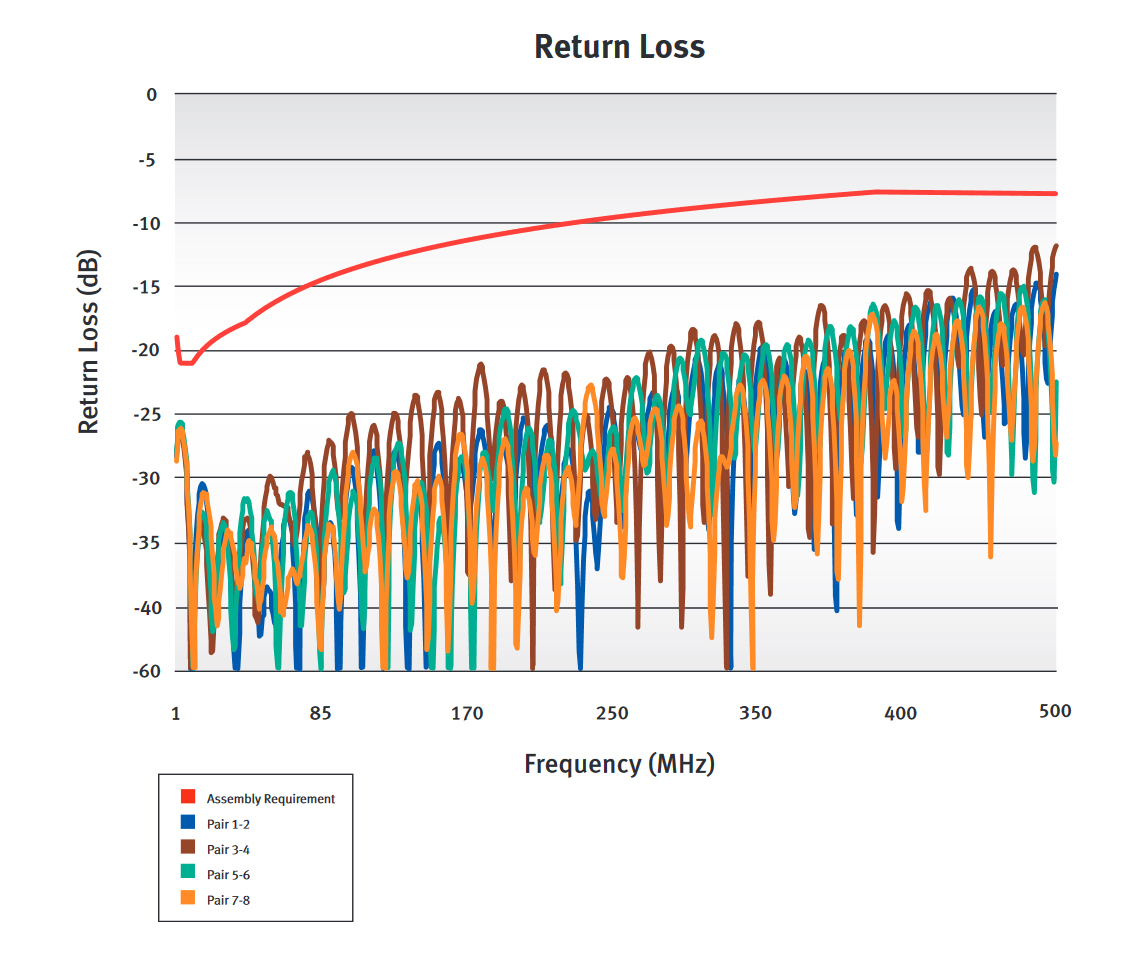

![Return Loss Graph](/sites/default/files/2017-04/Carlisle%20Octax%20M38999%20-%20Return%20Loss%20graph.jpg 1x, /sites/default/files/2017-04/Carlisle%20Octax%20M38999%20-%20Return%20Loss%20graph.jpg 2x)
![Near-End Crosstalk Graph](/sites/default/files/2017-04/Carlisle%20Octax%20M38999%20-%20Near-End%20Crosstalk%20graph.jpg 1x, /sites/default/files/2017-04/Carlisle%20Octax%20M38999%20-%20Near-End%20Crosstalk%20graph.jpg 2x)
Octax is a registered trademark of Carlisle Interconnect Technologies.
GORE and designs are trademarks of W. L. Gore & Associates. © 2016 W. L. Gore & Associates, Inc.
ACS-0193-REF-US-JAN16
